SH Fume Hood – 2400UP (Copy)
$4,700
- 2400mm length and 800mm depth
- Convenient operations with valve and electric side arrangement
- Dome-type duct design to eliminate swirl and residual conditions
- Reduce Co2 emissions by 38%, reduce power consumption by 62% (performance certified)
- Phenolic laminate inside, excellent chemical resistance
- Description
- Specification
- Reviews (0)
- FAQ
- Documents
Description
Description
Fume hood is a type of local ventilation device that is designed to limit exposure to hazardous or toxic fumes, vapors or dusts.
* Convenient operations with valve and electric side arrangement
* Dome-type duct design to eliminate swirl and residual conditions
* Reduce Co2 emissions by 38%, reduce power consumption by 62% (performance certified)
* Phenolic laminate inside, excellent chemical resistance
* Easy fit removable inspection hole
* Operation indicator lamp (green) and sound alarm
Option
– Built-in Fan Motor

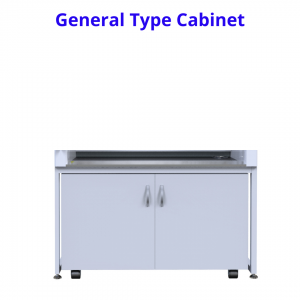

– Storage Cabinet (General type, Fire safety type, Acid & Corrosive safety type)
Built-in Fan Motor
Specification
| Model | SH-HD-2400UP |
|---|---|
| Type | Fume Hood Type |
| Dimension External (WxDxH) |
2400x800x2350mm 94.87×31.50×92.52″ |
| Dimension Internal (WxDxH) |
2224x676x1160mm 86.93×26.64×45.67″ |
| Structure | AL. Profile |
| Exterior | Phenolic Laminate |
| Interior / Baffle | Phenolic Laminate |
| Work Top | Phenolic Laminate, Epoxy, P.P / P.V.C, Stainless steel, Stoneware |
| Sash | Tempered Safety Glass 5.0T / Transparent clear |
| Utility | Air / N2 / Water |
| Cock & Valve | P.P / Brass |
| Lamp | LED |
| Lamp case | Explosion proof / Vapor proof – Optional |
| Electrical supply | External socket, 110V/220V. 60Hz |
| Controller | LCD Touch controller – Optional |
| Cat. No.120V | HD2400UP120 |
| Cat. No.230V | HD2400UP230 |
