64MG – 1200°C – SH Large Scale Muffle Furnace
$9,830
- Harmful gas & fume removal protects laboratory air quality
- Three-stage filtration system. Pre-filter, HEPA filter and VOC filter
- Adjustable airflow. 10 levels of air intake and exhaust volume adjustment
- Ductless operation
- (Optional) Testo 300 Combustion Gas Analyzer for Monitoring Oxygen-free atmosphere inside the chamber or tube and measure combustion gas and synthetic gas components – Contact us for available options
- (Optional) Laboratory Gas-Drying Unit by Drierite™ with Connector
- (Optional) Quartz Shelf Designed to Maximize Available Space in the Chamber

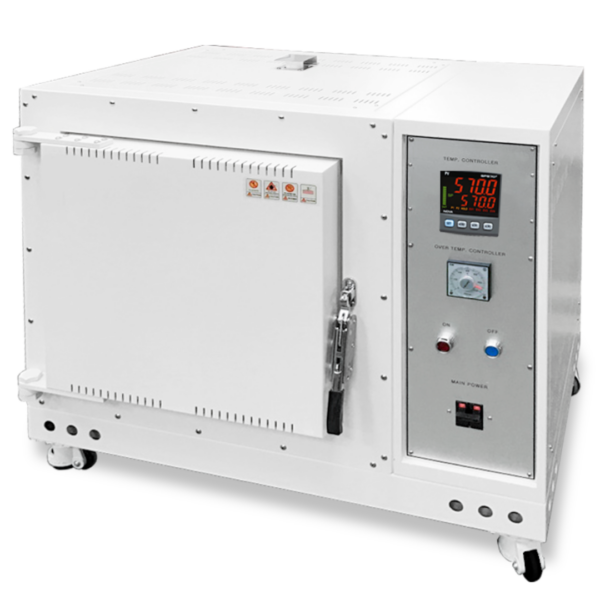

- High temperature muffle furnace with swing door

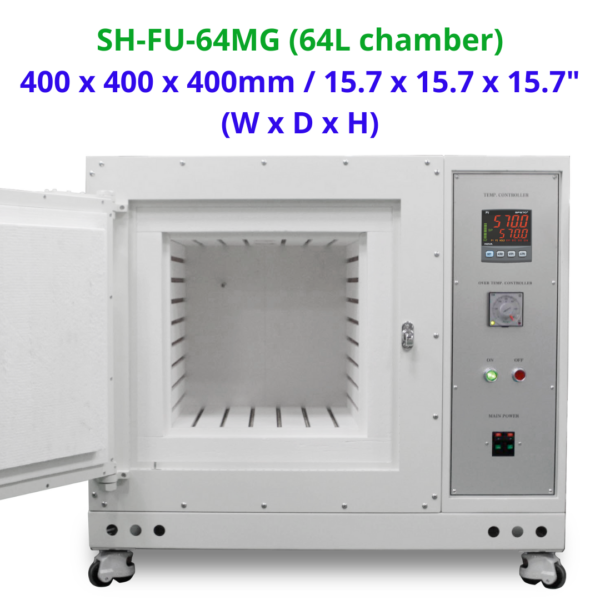

- Large scale 64L chamber (400 x 400 x 400mm, 15.7 x 15.7 x 15.7in)
- Recommended ideal running temperature is below 1000°C

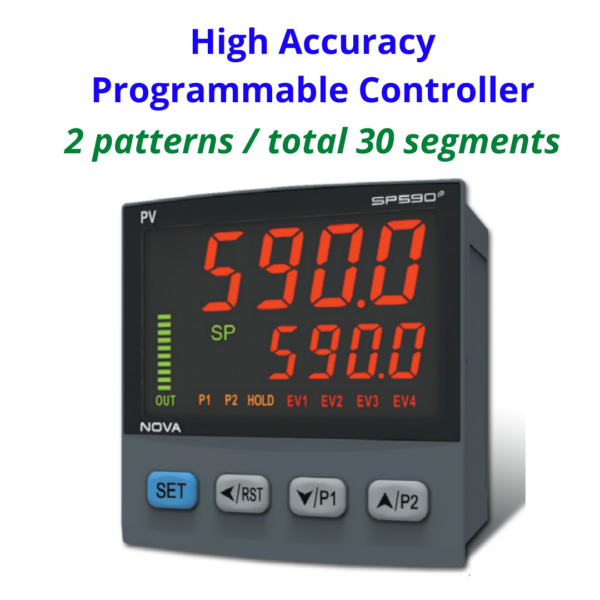

- 30 steps SP-570 programmable controller
- Heating from 4 sides and excellent temperature uniformity (+/-2.5%)
- Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
- Double housing and low surface temperature (29~30°C at 800°C)
- SSR operation and PID control provides low noise operation and precise temp control (+/-1°C)

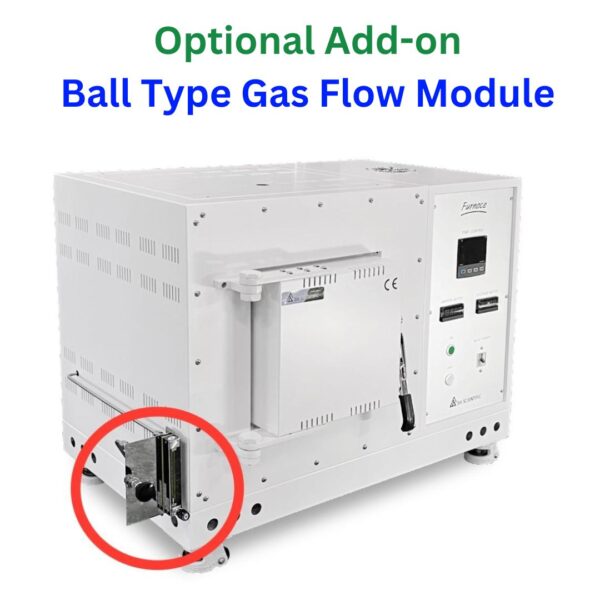

- Inert gas atmosphere available with optional ball type flow meter
- Description
- Specification
- Customer Photos
- Documents
- Reviews (0)
- FAQ
Description
Description
If you conduct thermal treatments at standard temperatures, then don’t overpay for a standard design!
SH Scientific’s MG line of standard muffle furnaces are capable of up to max 1200°C, with an ideal operating temperature of below 1000°C. This line is made with cost-conscious facilities, but in need for slightly higher maximum temperature limit of 1200°C, delivering rock-solid performance without costly frills or superfluous certifications.
- Rapid heating: Our MG furnaces reach 800°C in less than 40 minutes.
- Multiple sizes available: Choose among several standard capacity options, and pay for no more and no less than you need.
SH Scientific muffle furnaces are used for a wide range of thermal treatments and experiments, including:
- Ashing
- Calcination
- Reduction
- Oxidation
- Dissociation
- Sintering
- Pyrolysis
- Reaction
- Hardening and tempering
- Melting
- Thermocouple calibration
- Annealing
- Stress relieving
…among many more.
Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.
Specification
| Model | SH-FU-64MG |
|---|---|
| Max temperature | 1200℃ |
| Continuous running temperature | 1000℃ |
| Chamber volume | 64liters |
| Controller | Digital PID 30steps programmable controller |
| Sensor | K type |
| Heater | 9.0kW |
| Heating element | Kanthal A-1 |
| Insulation | Ceramic |
| Power supply | 220V, 1p, 41A hardwire |
| 220V, 3p, 23A hardwire | |
| 380V, 3p, 14A hardwire | |
| Net weight | 190kg |
| Chamber size | 400 x 400 x 400mm (15.7 x 15.7 x 15.7in) |
| External size | 1000 x 730 x 910mm (39.4 x 28.7 x 35.8in) |
