7MGE – 1050°C – SH Muffle Furnace

Name: 7MGE - 1050°C - SH Muffle Furnace
SKU: SH-FU-7MGE
Price: 2160 USD
Availability: InStock

0 out of 5

( There are no reviews yet. )

$2,160

What’s New in 2025

Mobile Fume Extractor/Hood

Harmful gas & fume removal protects laboratory air quality
Three-stage filtration system. Pre-filter, HEPA filter and VOC filter
Adjustable airflow. 10 levels of air intake and exhaust volume adjustment
Ductless operation

(Optional) Laboratory Gas-Drying Unit by Drierite™ with Connector

Also available in 3 liter capacity, 5 liter capacity and 11 liter capacity.

Economic muffle furnace with flap door- General material testing such as annealing, sintering, combustion, melting, densification and ash collection
Recommended ideal running temperature is below 850°C
Heating from 3 sides
Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
Reasonably priced for your budget saving

SKU: SH-FU-7MGE Categories: Muffle Furnace, Muffle Furnace Only, 1050C

*Power Voltage Option

220V (Default)
▾
110V
220V (Default)
$0
Quartz Shelf Option

No Quartz Shelf Needed
▾
No Quartz Shelf Needed
Quartz Shelf 100 – $320
Quartz Shelf 200 – $400
Quartz Shelf 300 – $490
$0
Add Gas Drying Unit with Mount (Drierite) $520
Add Portable Fume Hood ($1,730 + $250 Shipping)
Harmful gas & fume removal protects laboratory air quality
Flexible arm. Precise positioning to capture fumes directly at the source
Three-stage filtration system. Pre-filter, HEPA filter and VOC (volatile organic compounds) filter
Adjustable airflow. 10 levels of air intake and exhaust volume adjustment

Select Portable Fume Hood Option
▾
Select Portable Fume Hood Option
SH-HD-MUP with 220V Power Supply
SH-HD-MUP with 110V Power Supply
$0

Options amount: $0

Description

SH Scientific economic muffle furnace MGE goes up to max 1050°C and the ideal operating temperature is 850°C.
If your testing is carried out under this temperature in any case, do not overpay for standard design. This economic muffle furnace is designed for your budget-saving.

SH Scientific muffle furnace takes less than 40min to reach 800°C and we provide a variety of sizes, temperature programmable control models and various temperature range.

SH Scientific muffle furnaces are ideal for wide range of thermal application for material treatment and experiment including ashing, calcination, reduction, oxidation, dissociation, sintering, pyrolysis, reaction, hardening and tempering, melting, thermocouple calibration, annealing, stress relieving and etc.

Specification

Model	SH-FU-7MGE
Max temperature	1050℃
Continuous running temperature	850℃
Chamber volume	7liters
Controller	Digital PID controller
Sensor	K type
Heater	2.0kW
Heating element	KANTHAL A-1 with ceramic fiber
Insulation	Ceramic
Power supply	110V, 50/60Hz, 1p, 18A
	220V, 50/60Hz, 1p, 9A
Net weight	28kg

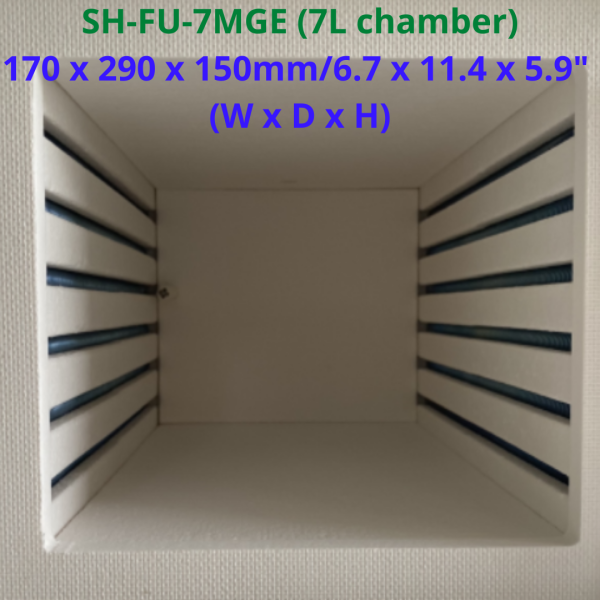

Chamber size	170x290x150mm
External size	340x460x450mm
