274TS – WG – 1800°C – Tube Furnace w/ Gas Supply System
$89,500
- Harmful gas & fume removal protects laboratory air quality
- Three-stage filtration system. Pre-filter, HEPA filter and VOC filter
- Adjustable airflow. 10 levels of air intake and exhaust volume adjustment
- Ductless operation
- (Optional) Testo 300 Combustion Gas Analyzer for Monitoring Oxygen-free atmosphere inside the chamber or tube and measure combustion gas and synthetic gas components – Contact us for available options
- (Optional) Laboratory Gas-Drying Unit by Drierite™ with Connector
- (Optional) Digital Vacuum Precision Meter by DigiVac
Also available in 50mm tube size, 80mm tube size and 100mm tube size.

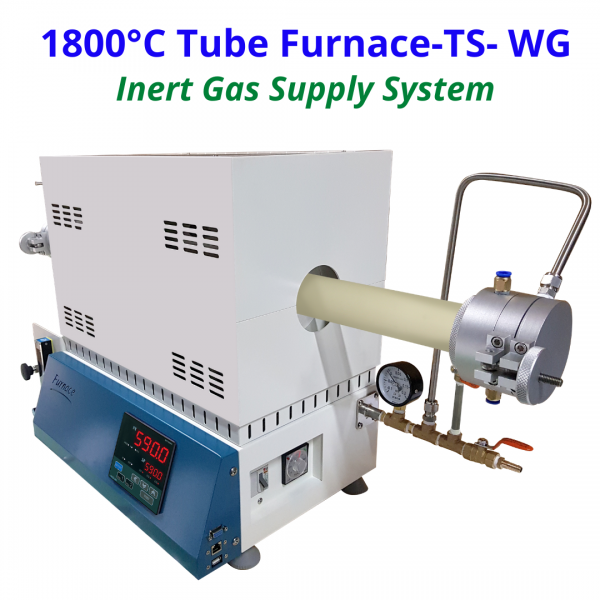

- Super high temperature tube furnace with inert gas flow management system including 1 alumina tube, 1 ball type gas flow meter, 2 aluminum sealing masks, and stainless steel 316 valves, pipes and fittings.
- Max temperature 1800°C. Recommended ideal running temperature is 1650°C or below.

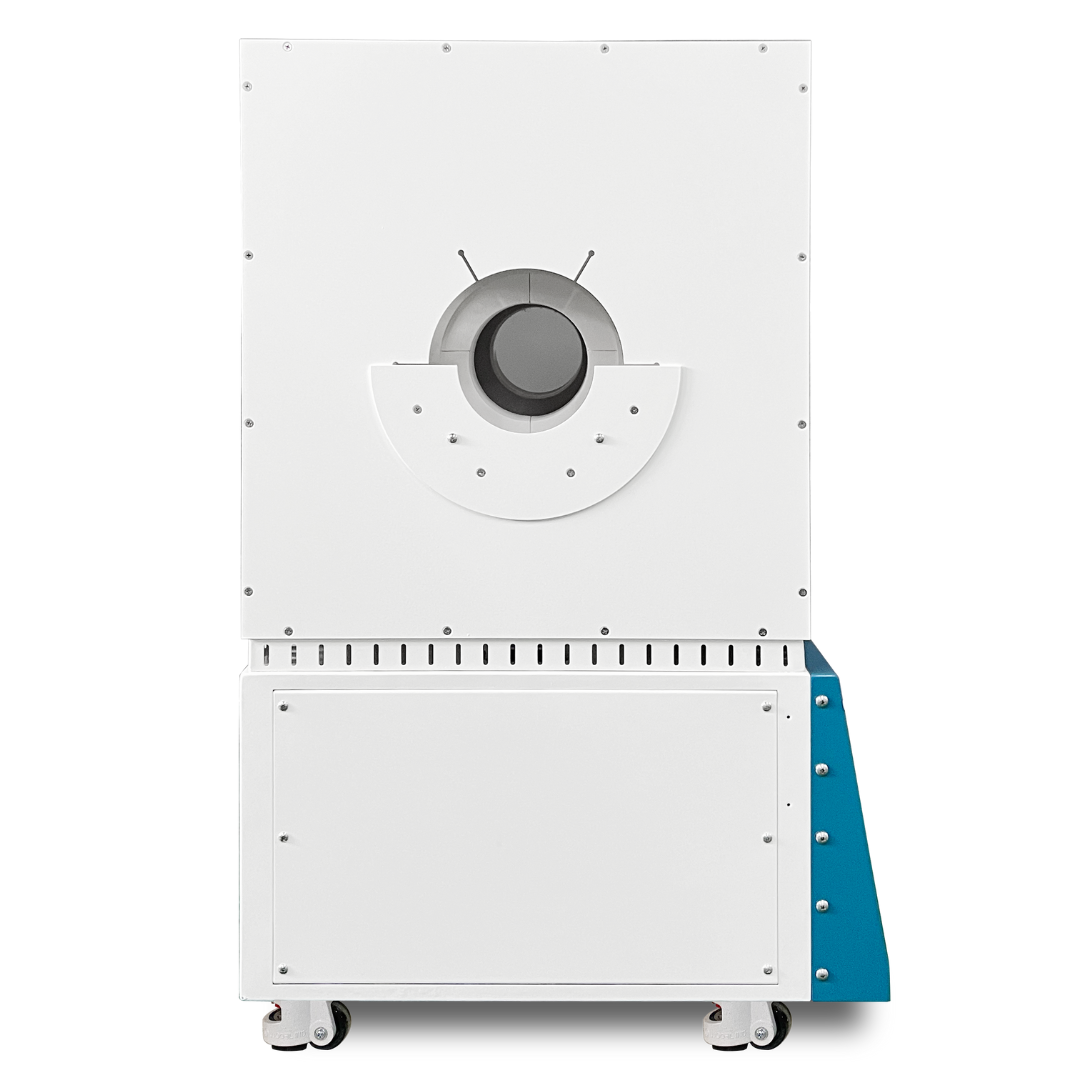

- 274mm diameter (10.8″ OD / 10.2″ ID)
- 300mm (12″) hot zone
- Easy assembly. Plug and play style.
- Great system for non-oxidation atmosphere experiment and treatment
- Fast cool down with inert gas flow
- Can be bundled with a vacuum pump and chiller as turn-key vacuum tube furnace system (Go to turn-key vacuum tube system category)
- Built in programmable controller. 2 patterns and 15 segment/pattern. Total 30 segments
- 50/80/100/120mm tube available.

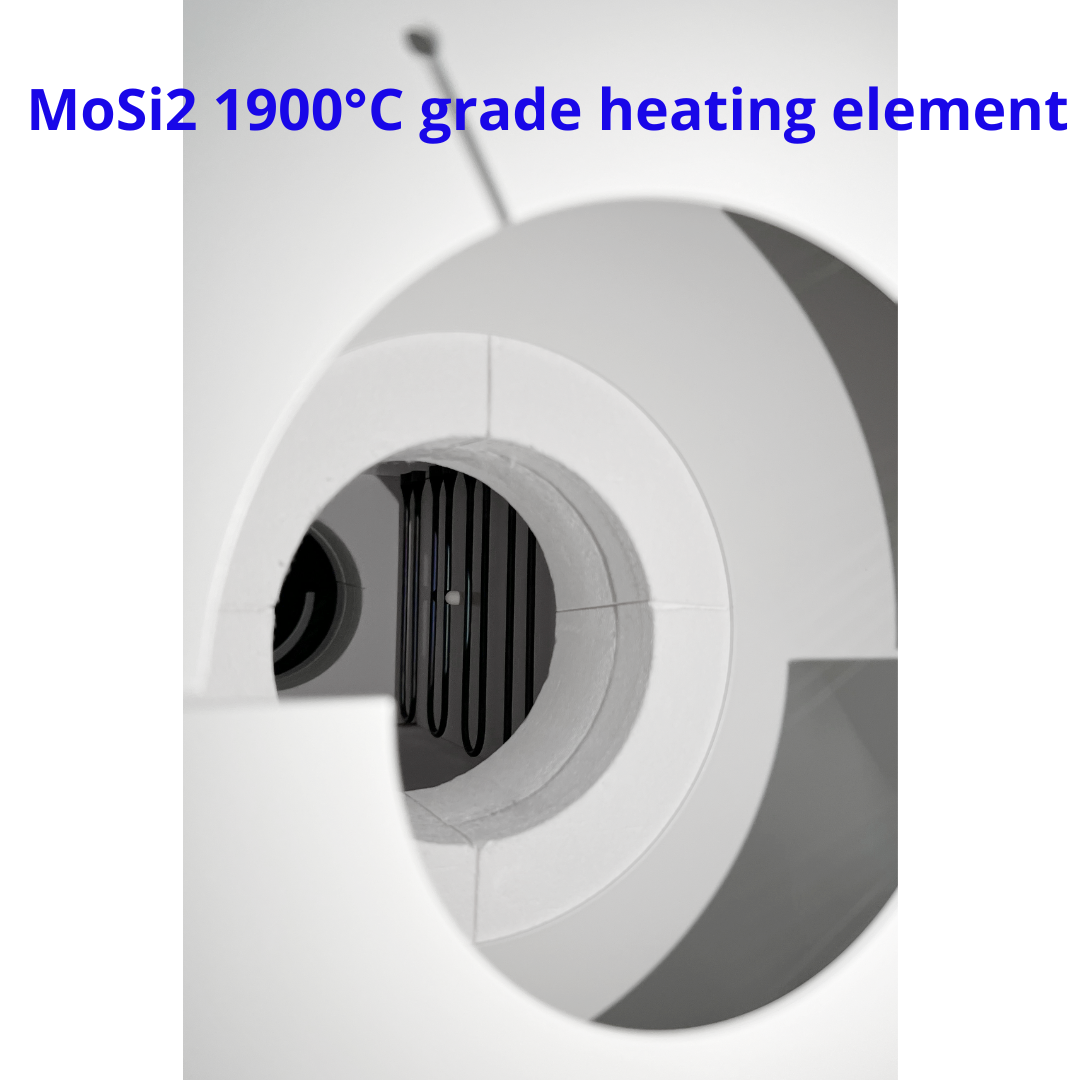

- Great durability thanks to MoSi2 heating element and easy replacement
- Built in over temp protector
- SCR operation and built in programmable controller provides low noise operation and precise temp control (+/-1°C)
- Description
- Specification
- Customer Photos
- Documents
- Reviews (0)
- FAQ
Description
Description
Built in South Korea, our tube furnaces offer unparalleled efficiency and versatility. Every model delivers industry-standard performance and endless customization, all at surprisingly accessible prices.
- Standalone tube furnace (STG/LTG series): Ideal for basic applications requiring precise heating.
- Tube furnace with gas flow management (WG series): Enhances control over atmospheric conditions, perfect for sensitive experiments.
- Turn-key vacuum tube furnace system (PK-G series): A comprehensive solution including a gas flow management system, vacuum pump, and chiller for advanced research needs.
Technical Excellence
SH Scientific’s tube furnaces are increasingly used in cutting-edge fields, including secondary and graphene battery research, polymer composites, and 3D printing material treatment.
Whatever configuration you choose, you and your team can expect:
- Wide temperature range: STG-WG/LTG-WG series operates at up to 1200° C with optimal performance at 1000° C.
- Programmable heating zones: Built-in 45-step controller for complex cyclic treatments, with heating zones of 1 x 300 mm (STG-WG) or 1 x 600 mm (LTG-WG).
- Extensive tube size options: Standard diameters are 50/80/100/120 mm. Significantly larger diameters are available upon request.
- Rapid heating & cooling: Minimize wait times with efficient thermal management.
- Economical sample treatment: A cost-effective choice for processing small samples, especially with volatile materials or special atmospheric requirements.
- Advanced features: Digital programmable controllers, single or three hot zones, double-shell construction for stability, and customizable tube diameters.
Customization & Accessories

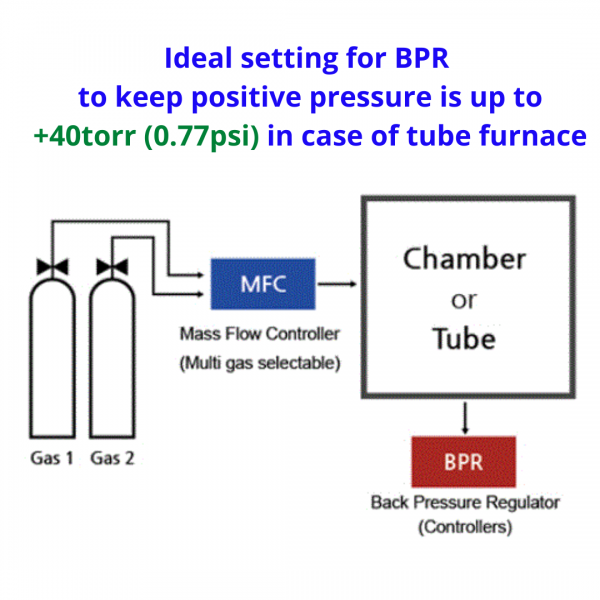

We specialize in gas flow management systems. Our turn-key vacuum tube furnace system (with recirculating chillers and low-noise vacuum pumps) is a popular upgrade for more seamless set-up and use.
This particular configuration features a seamless stainless steel 316 flow line; valve and connector; gas-tight sealing mask; and quartz, ceramic, or alumina tube.
Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.
Specification
| Model | SH-FU-274TS-WG |
| Max temperature | 1800°C |
| Continuous running temperature | 1650°C |
| Tube diameter | 274mm (10.8″ OD / 10.2″ ID) |
| Controller | Programmable controller |
| Sensor | B type |
| Heater | 9.2kW |
| Hot zone | 300mm |
| Heating element | MoSi2 |
| Insulation | Ceramic |
| External size | |
| Weight | |
| Power supply | 220V, 50/60Hz, 1p, 42A |
