H1 – 1500°C – SH Vacuum Tube Furnace Turnkey System
$16,290
- Harmful gas & fume removal protects laboratory air quality
- Three-stage filtration system. Pre-filter, HEPA filter and VOC filter
- Adjustable airflow. 10 levels of air intake and exhaust volume adjustment
- Ductless operation
- (Optional) Testo 300 Combustion Gas Analyzer for Monitoring Oxygen-free atmosphere inside the chamber or tube and measure combustion gas and synthetic gas components – Contact us for available options
- (Optional) Laboratory Gas-Drying Unit by Drierite™ with Connector
- (Optional) Digital Vacuum Precision Meter by DigiVac
Also available in 80mm tube size, 100mm tube size and 120mm tube size.

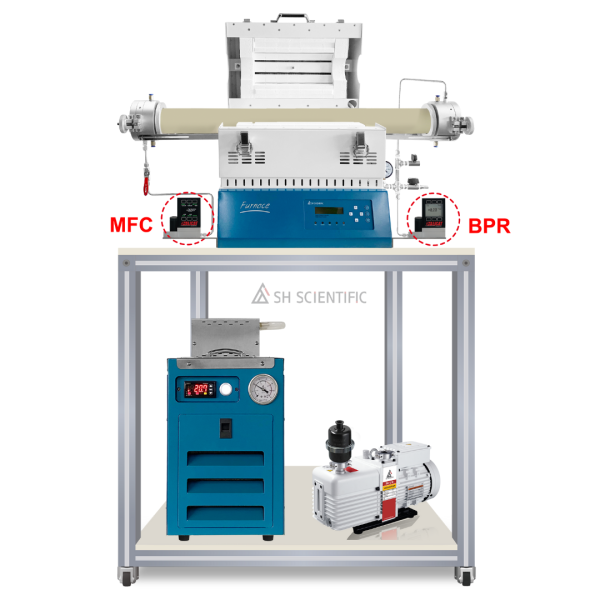

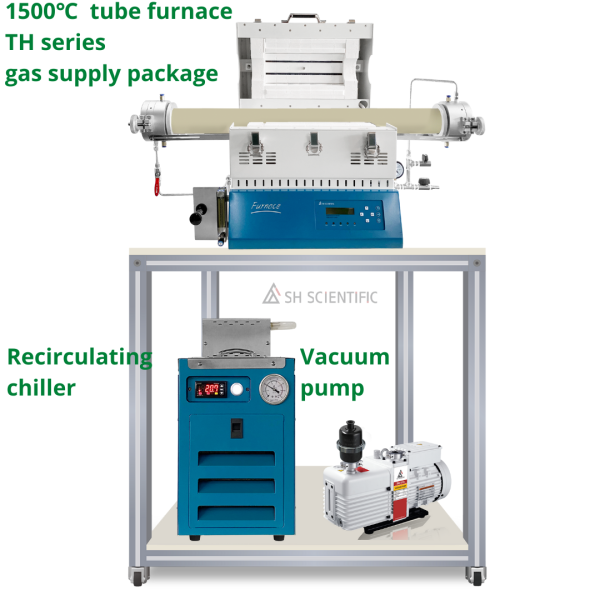

- High temperature vacuum tube furnace with recirculating chiller and low noise vacuum pump *Moving cart is just for an image not included
- Inert gas flow management system including ball type gas flow meter, Aluminum sealing mask and stainless steel 316 valves and pipes. Quartz or Alumina tube included
- Optional 98 multi gases selectable mass flow controller and back pressure regulator
- Perfect turnkey system for non-oxidation atmosphere experiment and treatment after pulling vacuum
- Fast cool down with inert gas flow
- Nearly assembled for your plug and play
- Max temp 1500°C and recommended ideal running temp below 1350°C
- Built in programmable controller. 5 patterns and 9 segment/pattern. Total 45 segments
- 50/80/100/120mm tube available. 300 hot zone available
- Great durability thanks to SiC heating element
- Light weight and prompt heat up thanks to ceramic insulation
- Convenient design for sample loading
- Built in over temp protector
- SCR operation and built in programmable controller provides low noise operation and precise temp control (+/-1°C)
- Description
- Specification
- Customer Photos
- Documents
- Reviews (0)
- FAQ
Description
Description
Built in South Korea, our tube furnaces offer unparalleled efficiency and versatility. Every model delivers industry-standard performance and endless customization, all at surprisingly accessible prices.
- Standalone tube furnace (STG/LTG series): Ideal for basic applications requiring precise heating.
- Tube furnace with gas flow management (WG series): Enhances control over atmospheric conditions, perfect for sensitive experiments.
- Turn-key vacuum tube furnace system (PK-G series): A comprehensive solution including a gas flow management system, vacuum pump, and chiller for advanced research needs.
Technical Excellence
SH Scientific’s tube furnaces are increasingly used in cutting-edge fields, including secondary and graphene battery research, polymer composites, and 3D printing material treatment.
Whatever configuration you choose, you and your team can expect:
- Wide temperature range: PK-H series operates at up to 1500° C with optimal performance at below 1350°C.
- Programmable heating zones: Built-in 45-step controller for complex cyclic treatments, with heating zones of 300 mm.
- Extensive tube size options: Standard diameters are 50mm(H1)/80mm(H2)/100mm(H3)/120mm(H4). Significantly larger diameters are available upon request.
- Rapid heating & cooling: Minimize wait times with efficient thermal management.
- Economical sample treatment: A cost-effective choice for processing small samples, especially with volatile materials or special atmospheric requirements.
- Advanced features: Digital programmable controllers, single or three hot zones, double-shell construction for stability, and customizable tube diameters.
Customization & Accessories
We specialize in gas flow management systems. Our turn-key vacuum tube furnace system (with recirculating chillers and low-noise vacuum pumps) is a popular upgrade for more seamless set-up and use.
This particular configuration features a seamless stainless steel 316 flow line; valve and connector; gas-tight sealing mask; and ceramic, or alumina tube.
Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.
Specification
| Model | SH-FU-50TH-WG |
| Max temperature | 1500°C |
| Continuous running temperature | 1350°C |
| Tube diameter | 50mm |
| Controller | Programmable controller |
| Sensor | R type |
| Heater | 5.2kW |
| Hot zone | 300mm |
| Heating element | SiC |
| Insulation | Ceramic |
| External size | 690x490x580mm (furnace only) |
| Weight | 67kg (furnace only) |
| Power supply | 220V, 50/60Hz, 1p, 23A |

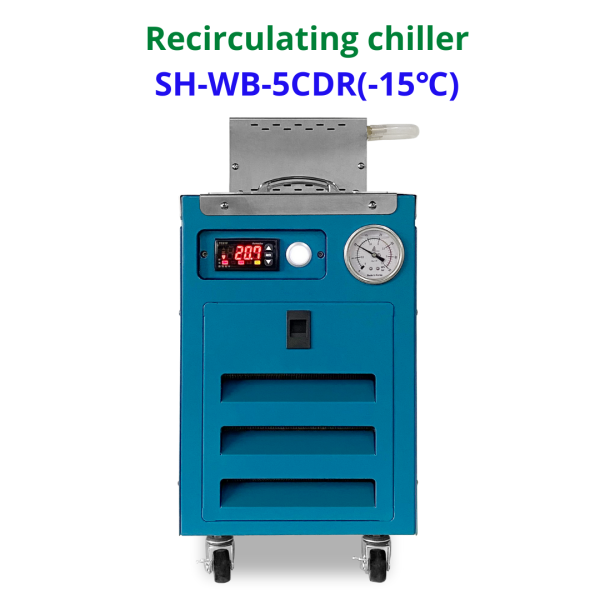

| Model | SH-WB-5CDR(-15) |
| Temp Range | -15°C to ambient |
| Temp Controller | Microprocessor membrane Digital PID Controller |
| Recirculating pump | Max flow 8L/min Max head 3.5meters°CWater proof IPX4 |
| Reservoir | 5 L |
| Dimension Internal | 200x200x130mm |
| Dimension External | 283x400x565mm |
| Net Weight | 26 Kg |
| Material Internal | Stainless Steel |
| Material External | Steel Plate with Powder Heating Coated |
| Electrical Requirements | 6.5 A 230v ,60Hz, 1Φ |
| Model No. | SH-VDC10 |
| Speed@60hz | 96L/min |
| 3.4 cfm | |
| Ultimate partial pressure gas ballast close |
|
| Ultimate total pressure gas ballast close |
5×10-2 Pa |
| Ultimate total pressure gas ballast open |
10 |
| Power supply | 110V~220V, 1phase |
| Power rating(kW) | 0.4 |
| Inlet/Exhaust flange | KF16/25 |
| Oil volume(L) | 0.6~1.0 |
| Noise level | <48 |
| Weight(kg) | 15 |
