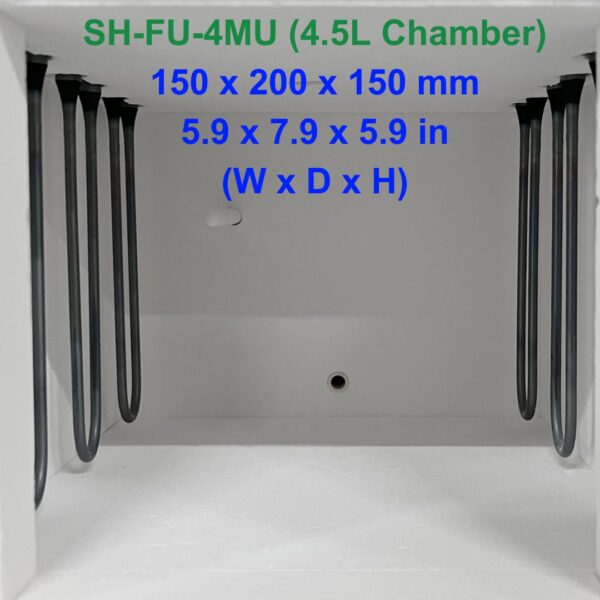

SH Scientific 1900C Muffle Furnace_4MU_Inside
SH Scientific 1900C Muffle Furnace_MU_Optional_GFM

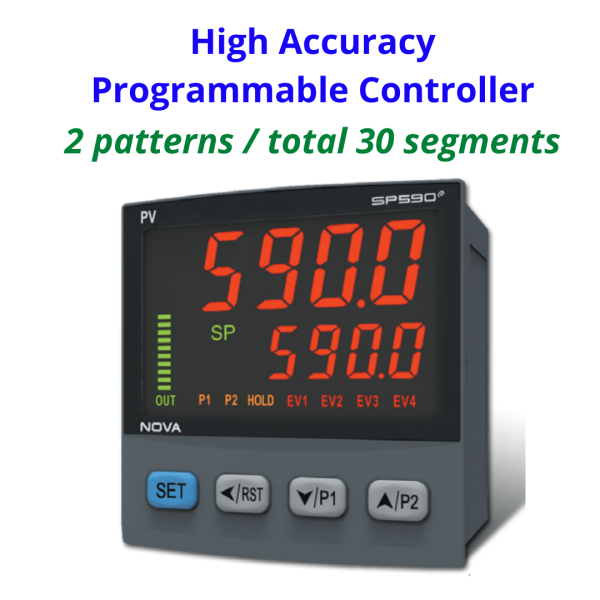

1800c-muffle-furnace-sp590-programmable-controller
Gas & Air Drying Unit
Gas & Air Drying Unit Installed

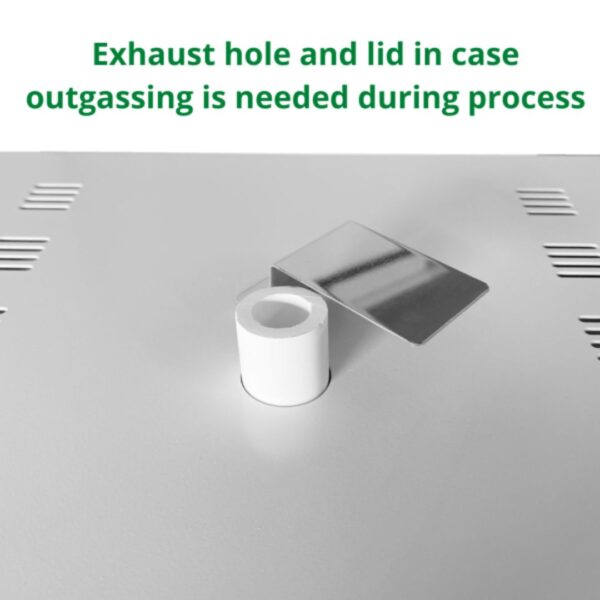

SH Scientific 1800C Muffle Furnace_MS_Exhaust Hole

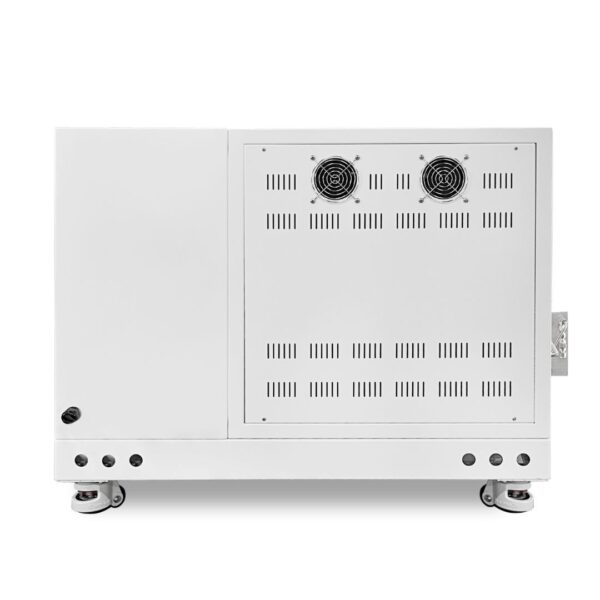

SH Scientific 1900C Muffle Furnace_MU_Back

4MU – 1900°C – SH Muffle Furnace

11MU – 1900°C – SH Muffle Furnace
0 out of 5

$16,900

What’s New in 2025
Mobile Fume Extractor
Mobile Fume Extractor/Hood
  • Harmful gas & fume removal protects laboratory air quality
  • Three-stage filtration system. Pre-filter, HEPA filter and VOC filter
  • Adjustable airflow. 10 levels of air intake and exhaust volume adjustment
  • Ductless operation
  • (Optional) Testo 300 Combustion Gas Analyzer for Monitoring Oxygen-free atmosphere inside the chamber or tube and measure combustion gas and synthetic gas components – Contact us for available options
  • (Optional) Laboratory Gas-Drying Unit by Drierite™ with Connector
Also available in 11 liter capacity and 22 liter capacity.



  • High-Temperature Furnaces with 1900°C grade MoSi2 Rod Heating Element
  • Great for testing metallic sample and sintering
  • Built in high accuracy programmable controller. 2 patterns and 15 segment/pattern. Total 30 segments. Max input temperature 1800°C.
  • Recommended ideal running temperature is below 1750°C *24hours continuous running
  • Heating from 2 sides and vertical MoSi2 rod preventing warping. Easy replacement
  • Excellent outgassing thanks to the exhaust air outlet on the head of chamber, i.e plastic polymer
  • Double housing and low surface temperature
  • Ceramic fiber materials which are not classified as carcinogenic
  • Great temp uniformity (+/-4%)
  • Prompt heat up and good maintaining
  • SCR operation and programmable control provides low noise operation and precise temp control (+/-1°C)
  • Inert gas atmosphere available with optional ball type flow meter
SKU: SH-FU-4MU Category:
    • $0
    • $0
Options amount
$0

Description

If you conduct thermal treatments needing to reach up to 1800°C, then our MS line HIGH-TEMPERATURE muffle furnace will make a great choice for your needs!

SH Scientific’s MS line of high-temperature muffle furnaces are capable of up to max 1800°C, with an ideal operating temperature of below 1650°C (for 24 hours continuous running). This line comes with built-in 30 steps programmable controller, delivering rock-solid performance and durability.

  • Multiple sizes available: Choose among several capacity options.

SH Scientific muffle furnaces are used for a wide range of thermal treatments and experiments, including:

  • Ashing
  • Calcination
  • Reduction
  • Oxidation
  • Dissociation
  • Sintering
  • Pyrolysis
  • Reaction
  • Hardening and tempering
  • Melting
  • Thermocouple calibration
  • Annealing
  • Stress relieving

…among many more.
Do you need to create an inert gas atmosphere inside chamber with N2 or Argon? We offer ball type gas flow meter as option.
Need something we haven’t listed here? Reach out to share your requirements and talk through more customized offerings.



Model SH-FU-4MU
Max temperature 1900°C
Continuous running temperature 1750°C
Chamber volume 4.5liters
Controller Programmable controller, Max input temperature 1800°C
Sensor B type
Heater 3kW
Heating element 1900°C grade MoSi2
Insulation Ceramic
Power supply 220V, 50/60Hz, 1p, 14A
Net weight 150kg
Chamber size 150x250x150mm
External size 920x600x770mm
